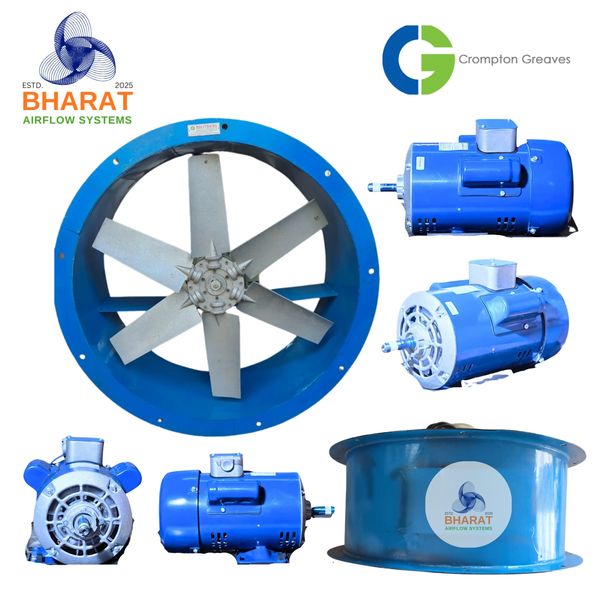

Axial Fan - High quality industrial fans

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (18" /20")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 1 HP
Voltage: 220 V, AC ±10%
Phase: Single‑phase
Speed: 1440 RPM
Airflow: 4000–9000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 2 HP 1440 RPM 220 V 50.8 cm (24")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 2 HP
Voltage: 220 V / 415V, AC ±10%
Phase: Single‑phase
Speed: 1440 RPM
Airflow: 5000–10000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 2 HP 1440 RPM 220 V 50.8 cm (24")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 2 HP
Voltage: 220 V / 415V, AC ±10%
Phase: Three-phase
Speed: 1440 RPM
Airflow: 5000–10000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (29")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 2 HP
Voltage: 220 V / 415V, AC ±10%
Phase: Single‑phase
Speed: 1440 RPM
Airflow: 10000-14000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (29")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 2 HP
Voltage: 220 V / 415V, AC ±10%
Phase: Three-phase
Speed: 1440 RPM
Airflow: 10000-14000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (18" /20")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 3 HP
Voltage: 415 V, AC ±10%
Phase: Three‑phase
Speed: 1440 RPM
Airflow: 12000–16000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (18" /20")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 3 HP
Voltage: 415 V, AC ±10%
Phase: Three‑phase
Speed: 1440 RPM
Airflow: 14000–18000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (18" /20")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 5 HP
Voltage: 415 V, AC ±10%
Phase: Three‑phase
Speed: 1440 RPM
Airflow: 16000–24000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India

Model Name: Centrifugal Axial Drum Fan 1 HP 1440 RPM 220 V 50.8 cm (18" /20")
Type: Tube Axial Fan
Application: Commercial / Industrial ventilation, exhaust
Drive Type: Direct drive
Motor Power: 5 HP
Voltage: 415 V, AC ±10%
Phase: Three‑phase
Speed: 1440 RPM
Airflow: 18000–26000 CFM
Blade Material: Cast Iron / Aluminium
Guard Material: Galvanized steel / powder‑coated MS guard
Mounting Type: Duct‑mounted / Foot‑mounted
Motor Protection: IP54 / IP55 (dust and water‑resistant)
Protection Features: Thermal overload protection
Ambient Temperature Range: Up to 40–55 °C
Frequency: 50 Hz ±5%
Warranty: 1 year
Country of Origin: India
